Automatic photovoltaic cell strip testing machine

Test item:
This testing machine is mainly used for testing solar photovoltaic modules and other samples: tensile, stripping, tearing and other precision mechanical tests.
Applicable industry:
The testing machine is mainly used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commodity inspection arbitration, technical supervision and other departments.

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details
Product Parameters
Video
Application Industry

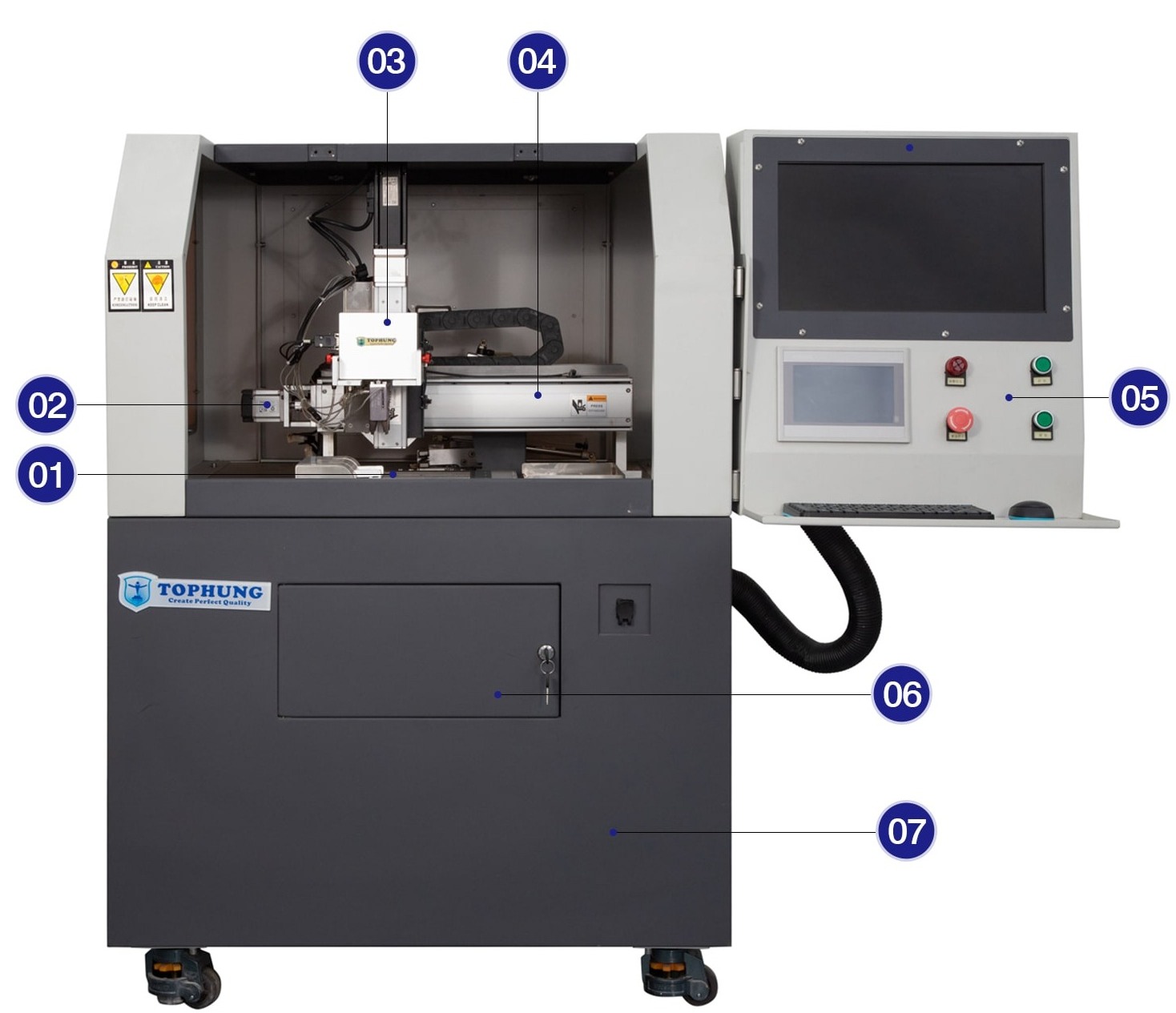

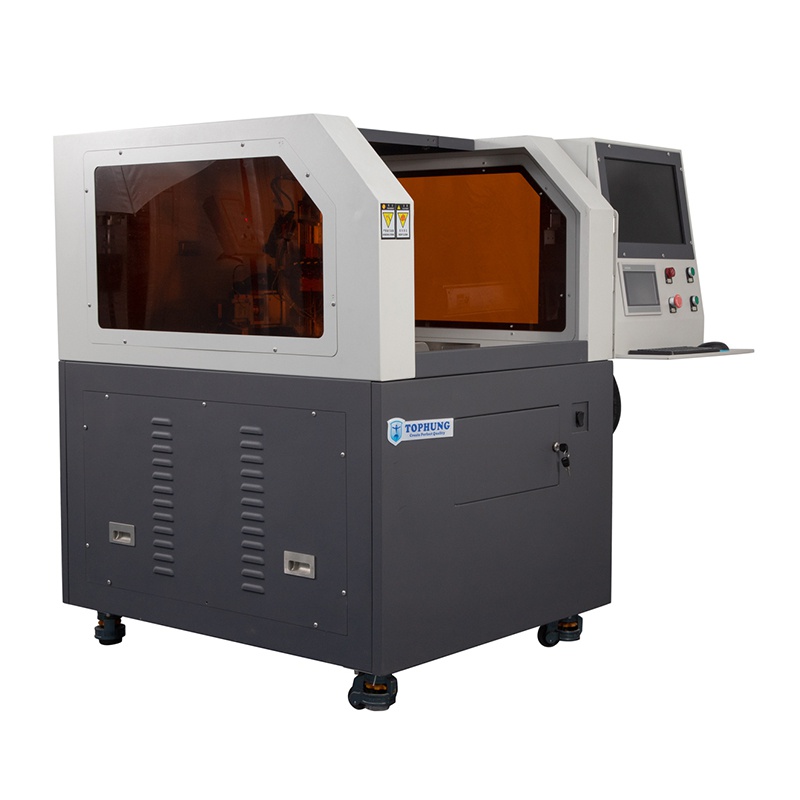

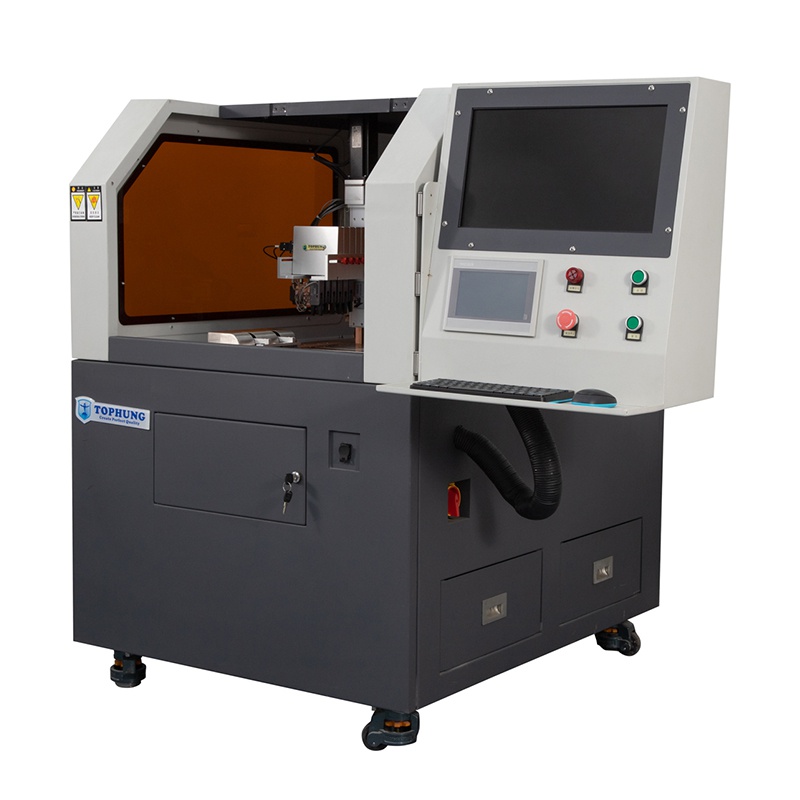

Automatic photovoltaic cell strip testing machine

Model:TOP-8801

Advantages

   01 It can meet the glass bending test of 2500*1500mm size

   02 The use of Therford electric cylinder drive, fast response, high control accuracy

   03 Test spacing can be adjusted freely

   04  Set the loading speed arbitrarily

Parameters

Model	TH-8208S	TH-8208A	TH-8208
Name	Servo Control Solar Cells Tensile Testing Machine	Computer System Solar Cells Tensile Testing Machine	Electronic Solar Cells Tensile Testing Machine
Capacity	10N,20N,50N,100N,200N,500N
Display Mode	Computer display or(LCD display+ computer display)		LCD display
Power system	Imported servo motor+ servo drive	Servo motor+ servo drive	Servo motor+ servo drive
Accuracy grade	Better than 0.5 level	Better than 0.5 level	Better than 1.0 level
Load range	0.2%-100%FS	0.2%-100%FS	0.5%-100%FS
Force error	Within±0.5%	Within±0.5%	Within±1.0%
Force resolution	1/±500000	1/±500000	1/±200000
Deformation ranger	0.2%-100%FS	0.2%-100%FS	0.2%-100%FS
Deformation error	Within±0.5%	Within±0.5%	Within±1.0%
Deformation resolution	0.0001mm	0.001mm	0.001mm
Displacement error	Within±0.5%	Within±0.5%	Within±1.0%
Displacement resolution	0.0005mm	0.001mm	0.001mm
Force control rate adjustment range	0.01%-10%FS/S
Force control rate accuracy	Within±1.0%
Deformation rate adjustment range	0.02%-5%FS/S
Deformation rate control accuracy	Within±1.0%
Displacement speed range	0.001-500mm/min	1.0-500mm/min	1.0-500mm/min
Effective test width	200*200mm 2station
Effective space	500mm
Dimension	900300900mm
Power	Single-phase220V 0.5KW
Weight	50kg

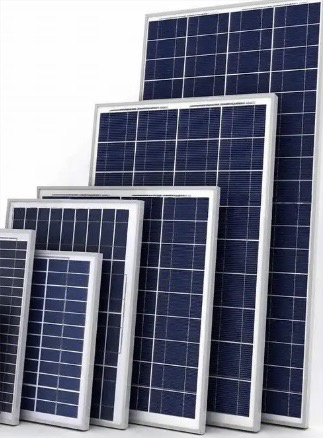

Applications

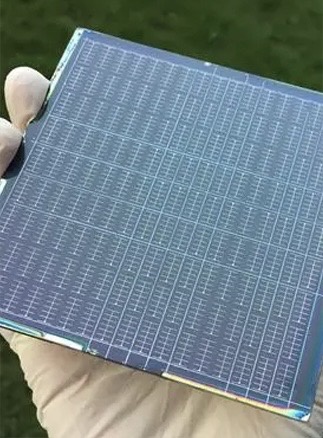

POLYCRYSTALLINE SILICON SOLAR CELLS

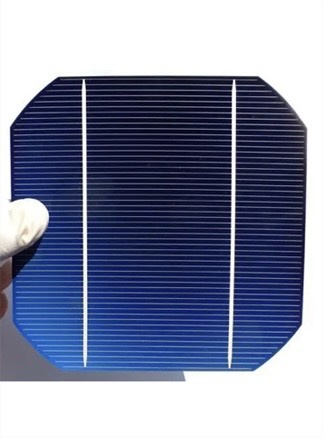

MONOCRYSTALLINE SILICON SOLAR CELLS

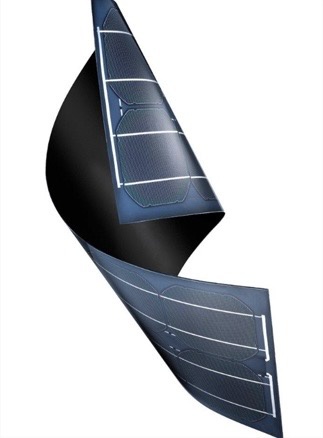

AMORPHOUS SILICON SOLAR CELLS
MULTI-COMPOUND SOLAR CELLS

FAQ

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA, we can help you to repair
your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide.
